Compressor

Description

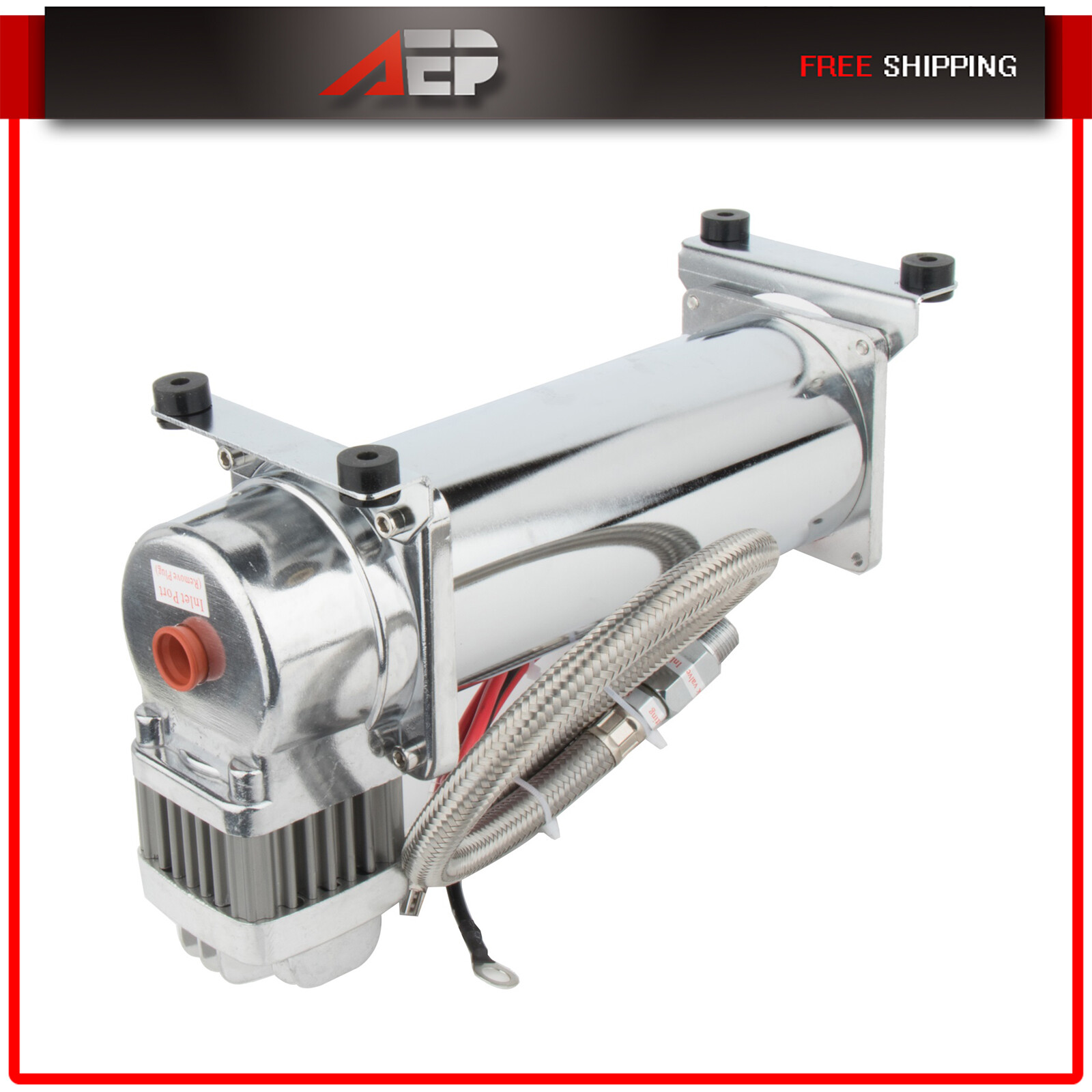

This maintenance free heavy duty air compressor rated at 200 PSI is designed for use with any high-pressure on-board air system, or other applications that require an air pressure supply. Designed to work with air tanks up to 5 gallons. Unit comes with a standard ¼" stainless steel braided hose with ¼" NPT in-line check valve, fuse and mounting hardware. Ideal for all vehicles with a 12V system.



Specification

Air Tank:

Compressor Onboard System Kit 12V For Train Horn 3 Gal Air Tank 200 Psi

Description

This maintenance free heavy duty air compressor rated at 200 PSI is designed for use with any high-pressure on-board air system, or other applications that require an air pressure supply. Designed to work with air tanks up to 5 gallons. Unit comes with a standard ¼" stainless steel braided hose with ¼" NPT in-line check valve, fuse and mounting hardware. Ideal for all vehicles with a 12V system.



Specification

Air Tank:

• 3 Gallon Air Tank Kit
• Capacity: 3 Gallon (12 Liter)
• Pressure Rating: 150 PSI, max 200 PSI
• 7 Ports: 6 x ¼" NPT, 1 x ½" NPT
• Anti-Corrosion Coating
• Precision Welded



Air Compressor:

•     200 PSI Air Compressor
•     12V Permanent Magnetic Motor
•     Maximum Working Pressure: 200 PSI
•     Duty Cycle: 100% @ 100 PSI
•     Amperage Draw: 23A
•     Flow Rate: 1.7CFM @ 0 PSI
•     Oil-less Design
•     Moisture and Dust Resistant
•     Anodized Aluminum Alloy Cylinder
•     Automatic Reset Thermal Overload Protector
•     Mounting Plates with Vibration Isolators
•     ¼" NPT Stainless Steel Braided Leader Hose
•     Intake Filter Assembly
•     Insulated Wiring with Connectors
•     30A In-line Fuse with Waterproof Holder



Included with this kit

• 3 Gallon Air Tank
• 240 PSI Air Pressure Gauge
• 170-200 PSI Pressure Switch
• 250 PSI Safety Valve
• ¼" NPT Wing Style Drain Valve
• ¼" NPT Compression Fitting for ¼" OD Air Line
• ¼" NPT Hex Head Male Plug
• ½" NPT Hex Head Male Plug
• ¼" OD Nylon Plastic Hose (6 Feet)
• 12mm Thread Sealant Tape (16 Feet)



Notes:

• instruction is not included.
• the compressor in this kit must be installed in a clean and dry location.



Item SpecificsBrand :auto_enginepartsManufacturer Part Number :AE108093P01Part Type :HornVoltage :12V DCManufacturer Warranty :1 YearKit or Single Part :KitColor :As Picture ShowsPlacement on Vehicle :Left Right Front RearFeature :Air Compressor ,Air Tank 200 PsiMax Pressure :200PSI
