Industrial 4-stage Air Dryer System For Compressor

• 【Industrial Performance】The air drying system features two robust 1/2" NPT air ports and a 1/4" NPT gauge port, Double drying system handling high-pressure environments (up to 240 PSI) for various industrial applications.(Do not Install Horizontally)
• 【Double Drying】 Compressed air dryer employs a four-stage filtration system to remove contaminants. The first stage (5-micron filter) removes 95% of particles and moisture. The second stage (0.01-micron coalescing filter) tackles 99.98% of remaining moisture and impurities. The three and four stage double desiccant air dryer ensures exceptionally clean and dry air.(No need to replace the main body) （If excess moisture exists in pipes before installation, replace desiccant beads repeatedly to remove it.）
• 【Easy Maintenance】Designed for user-friendly maintenance. The second stage filter features a visual window that pops out a red indicator when replacement is needed. The desiccant beads in the metal bowl change color from blue to pink, indicating they require replacement
• 【Sturdy Construction】Air regulator and water separator built with aluminium alve body,high strength, sturdy and resilient ,ensuring longevity in demanding industrial settings
• 【Complete Package】 Arrives with everything you need for immediate operation, including a pressure gauge, air connectors, pipe fittings, replacement filter elements, desiccant beads, and thread seal tape
• 【Note】Rest assured with our commitment to quality! This product comes backed by a 36-month return. Should you need assistance, our dedicated support team is available to help with installation guidance or technical inquiries

• Air inlet size: 1/2 NPT;2Filter&2Dryer
• Material: Aluminium
• Pressure Range: 0-240 Psi
• Operating Temperature Range: 40-140F(5-60℃)
• Tips: The startup working pressure is 30 PSI, and for the initial operation, please maintain it above 30 PSI.

Pay Attention to the Airflow Direction,And Follow the Arrow on the Pressure Regulator.

Accurate display for better operation.

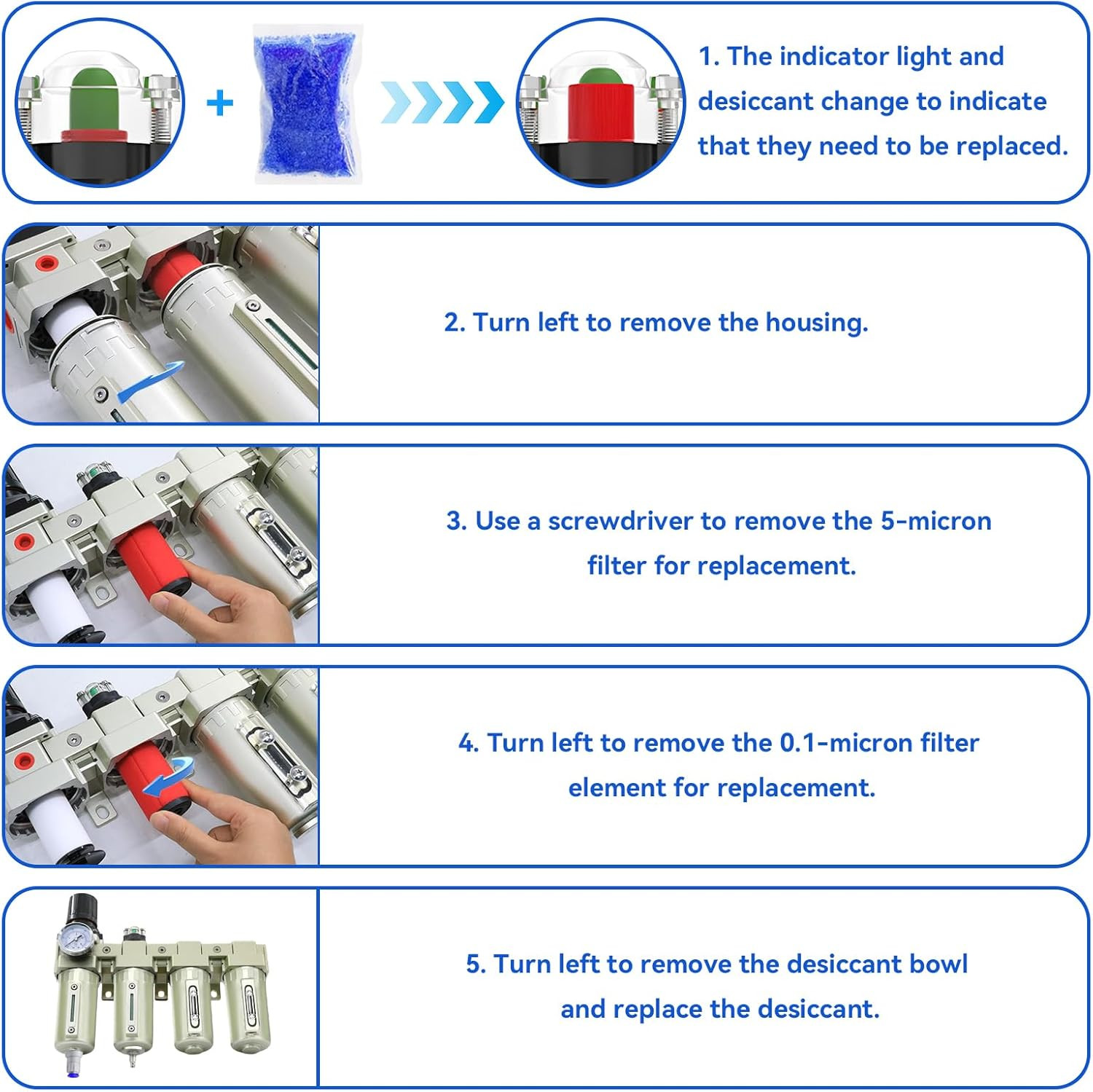

The Normal State And The State When It Needs To Be Replaced Are Shown In The Diagram.

In Its Normal State, The Desiccant Bead Is Blue.

When It Needs To Be Replaced, It Will Change To Red.

Rotate To The Left To Remove The Housin.

Use A Screwdriver To Remove The 5-Micron Filter Element For Replacement

Replace it with the new Filter Element.

Install the Filter Cup Back in Place.
